Personnel Lock System ECO-Line
The personnel lock system ECO-LINE is designed as an interspace between the dirty and the clean area. The modular system is adjustable to cover all sorts of requirements. The water preparation and the waste water filtering installation is provided with the water treatment unit Storage Water Heater or Flow Heater.

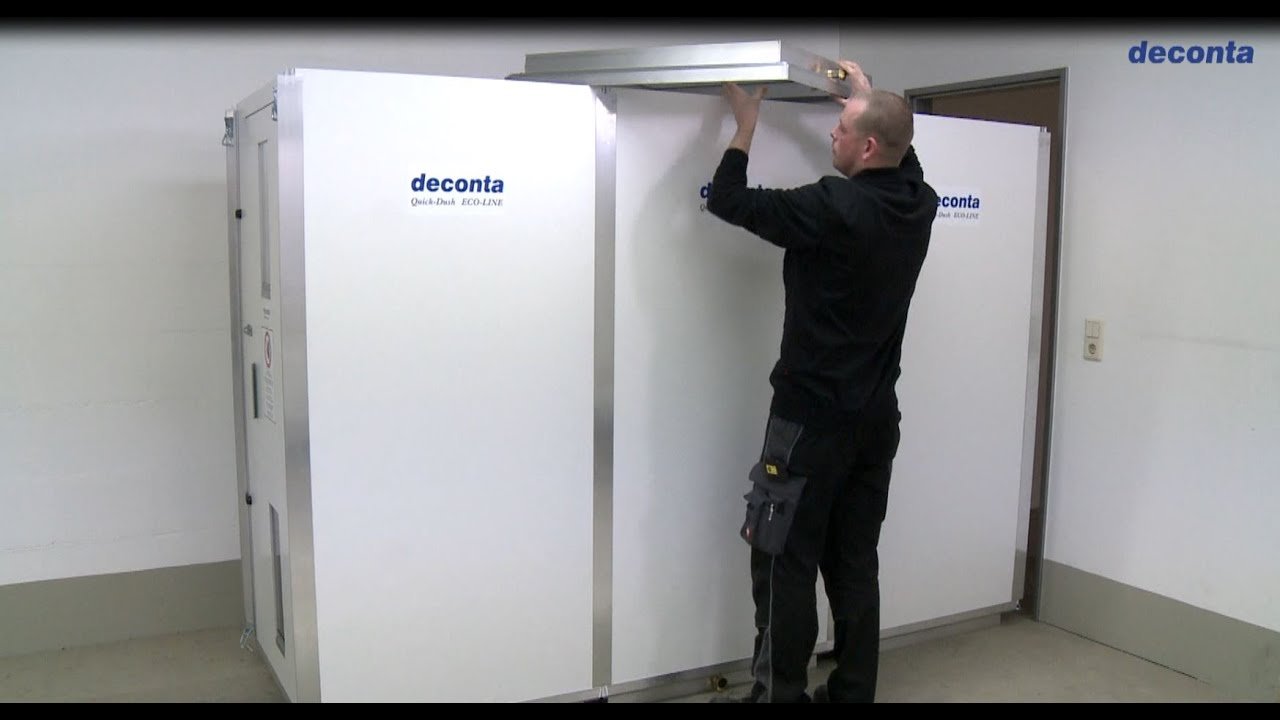

Any number of chambers can be connected without using tools. The structural stability of the floor- and roof elements is reached with corner profiles made of aluminium.
The sidewalls and door elements are made of recycled material and can be recycled again.
The lock system is equipped with a transport box for the transport and storage.
Ausstattung
- Door element with window
- Roof element transparent
- Resistant to heat and cold
- Water connections system GEKA
- Clear and straight surfaces for easy cleaning
- Door element with ventilation
- Shower head
Options
- Floor element shower with full drainage (fake floor)
- Floor element shower with elevated base. Removable mats for easy cleaning
- Increased wall height up to 230mm
- LED-lighting
- Coat hooks and mirror
- Shower mixer, mounted on roof element
- Shower mixer, mounted on wall element
Technical data
Measurement per chambe:
- Model 750: 750 x 750 x 2000 mm (L x W x H)
- Model 1000: 1000 x 1000 x 2000 mm (L x W x H)
Weight 3 chambers lock:
- Model 750: 150 kg
- Modell 1000: 200 kg
Weight 4 chambers lock:
- Model 750: 195 kg
- Modell 1000: 260 kg
Weight 5 chambers lock:
- Model 750: 240 kg
- Modell 1000: 320 kg
