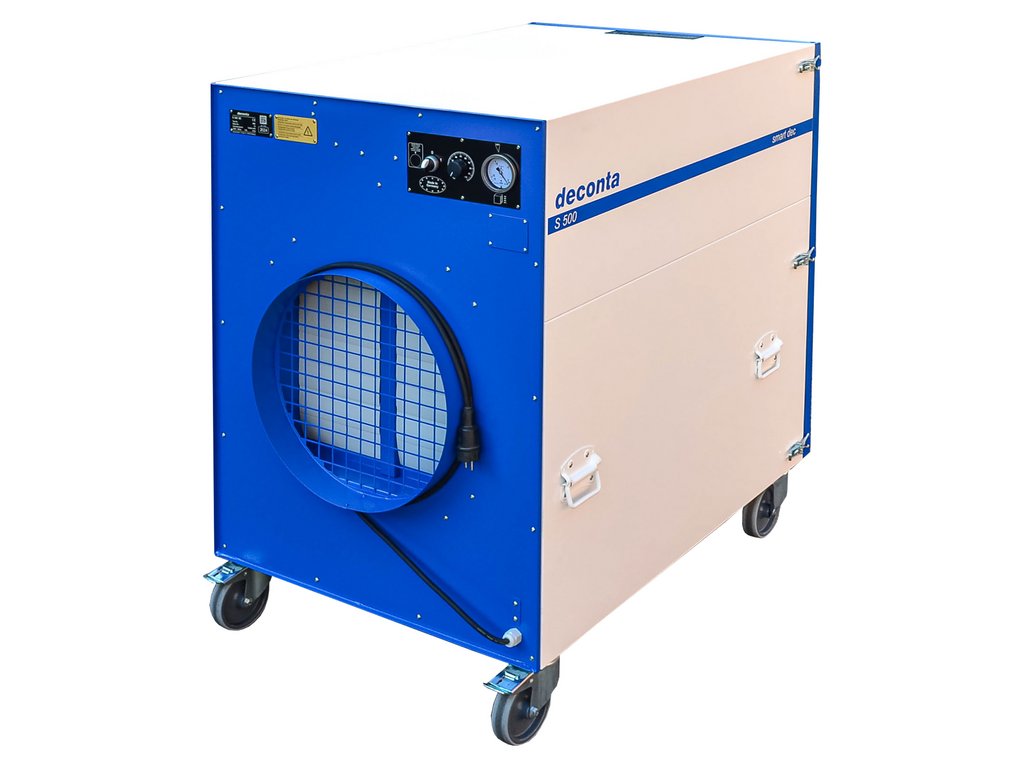

Negative Pressure Unit smart dec S500
Negative pressure unit for filtering asbestos contaminated room air via a 2-stage filter unit.
- energy-efficient and performance-optimized fan with high capacity
- smooth and easy-to-decontaminate housing
- light and sturdy housing
- threefold sealed HEPA filter
- easy, very low-emission filter change
- stainless and powder-coated housing
- automatic soft start, even after power failure
- automatic closing exhaust flap
Control SE
For power regulation, the negative pressure unit is supplied with a manual stepless regulation.
A necessary filter change is indicated by a manometer.
Technical data
All data on air performance and volume flows are taking into account a measuring tolerance of ± 15% based on the measuring range end value, determined in a multi-point measuring method with a calibrated vane anemometer.
- Dimensions in mm (LxWxH): 1080 x 750 x 1145
- Weight incl. filter: ca. 130 kg
- Voltage: 230 V
- Power consumption: 13 A
- Motopower: 2x 1,3 kW
- Volume flow without filter: 13300m³/h
- Volumen flow with filter: 10300 m³/h
- Filter stages: 2
- HEPA filter dimensions in mm: 610 x 910 x 400
- Hose connection suction: NW 450
- Hose connection exhaust: NW 450
- Chassis with wheels: integrated
ATTENTION! Only original deconta HEPA filters ensure machine safety!
