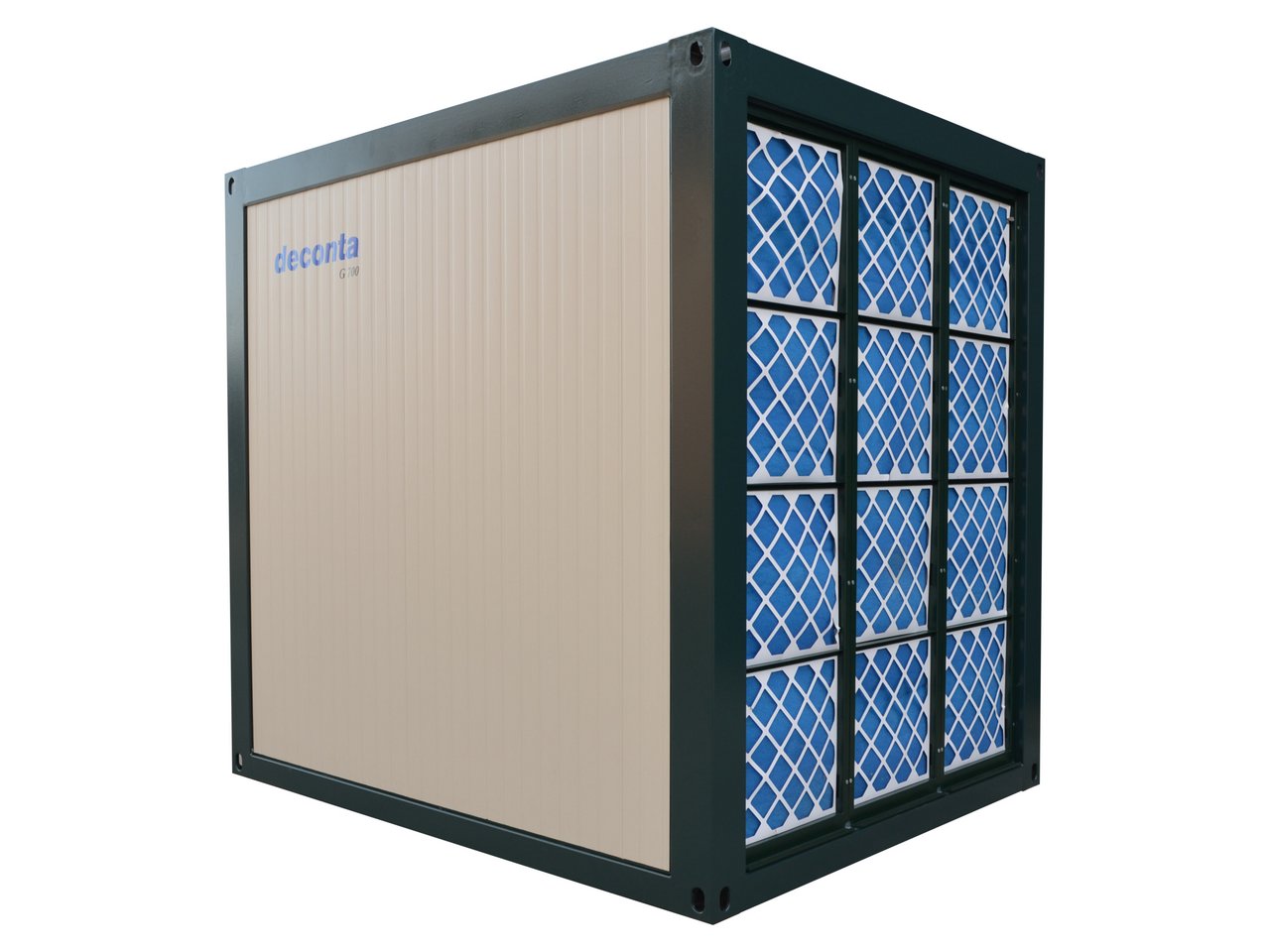

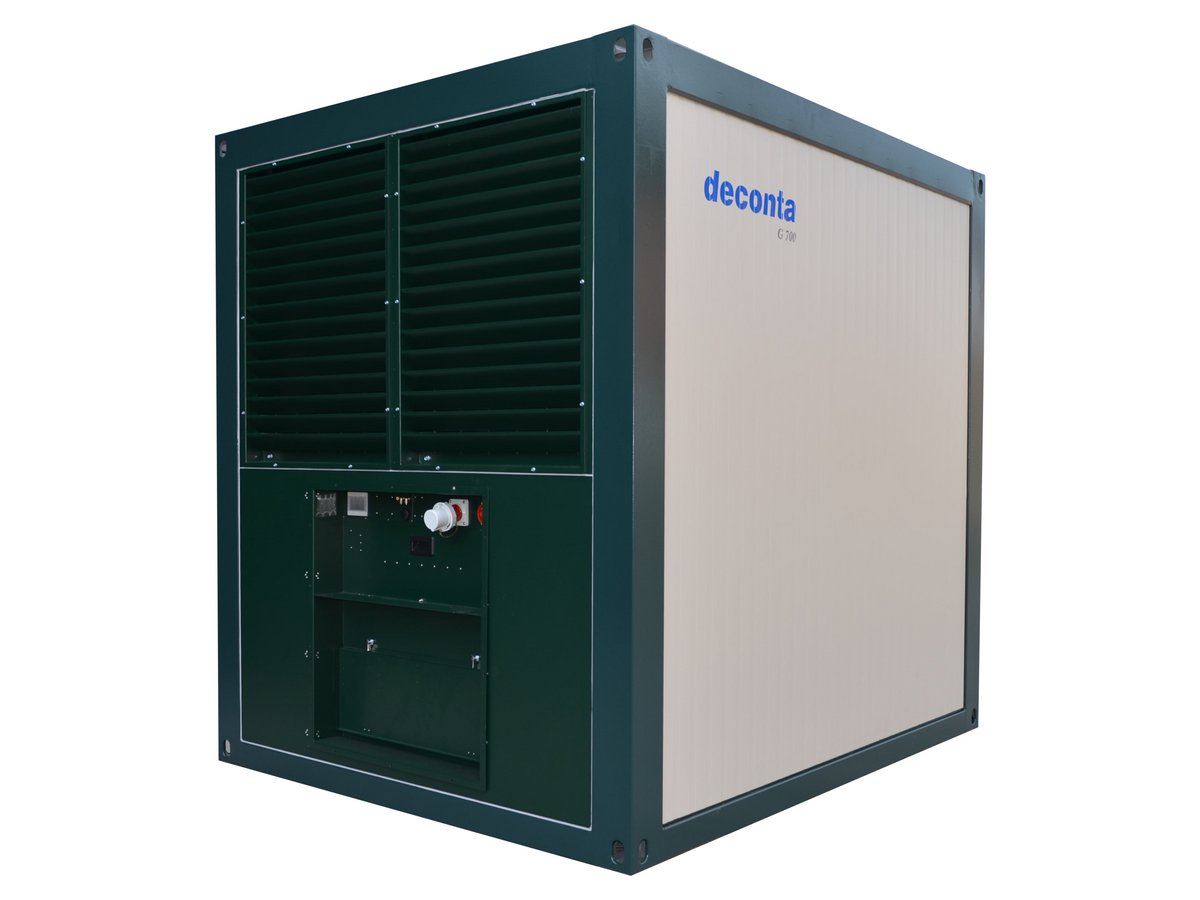

Negative Pressure Unit green dec G700
Negative pressure unit for filtering asbestos contaminated room air via a 3-stage filter unit.
- Energy-efficient and performance-optimized fan with high capacity
- smooth and easy-to-decontaminate housing
- threefold sealed HEPA filter
- Easy, very low-emission filter change in 3 minutes
- Automatic soft start, even after power failure operating control and functional elements are shock-protected
Control SRE connect
IoT (Internet of Things) => Devices with SRE connect control can be remotely controlled and monitored with any internet-enabled computer, mobile phone or tablet.
For power regulation, the negative pressure unit is supplied with a control via a touch display to measure and regulate the negative pressure and /or the volume flow.
The negative pressure is measured between the containment area and a reference point to be defined (adjacent rooms) and kept at the set point value by continuous speed control of the electric fan.
The volume flow is measured in the device and kept at the set point value by continuous speed control of the electric fan.
A manual control is also possible.
A necessary filter change is shown on the display.
Options
Technische Daten
Alle Angaben zur Luftleistung und zu Volumenströmen unter Berücksichtigung einer Messtoleranz von ±15% bezogen auf den Messbereichsendwert, ermittelt in einem Mehrpunktmessverfahren mit einem geeichten Flügelradanemometer.
- Abmessungen (LxBxH): 2990 x 2435 x 2890 mm
- Gewicht inkl. Filter: ca. 2200 kg
- Luftleistung mit Filter: 70000 m³/h
- Stromanschluss: 400 V, 63 A
- Stromaufnahme: 35 A
- Filtersystem 3-stufig
- Schwebstofffilter gemäß EN 1822 Klasse H13
ACHTUNG! Nur Original deconta HEPA-Filter gewährleisten die Maschinensicherheit!
