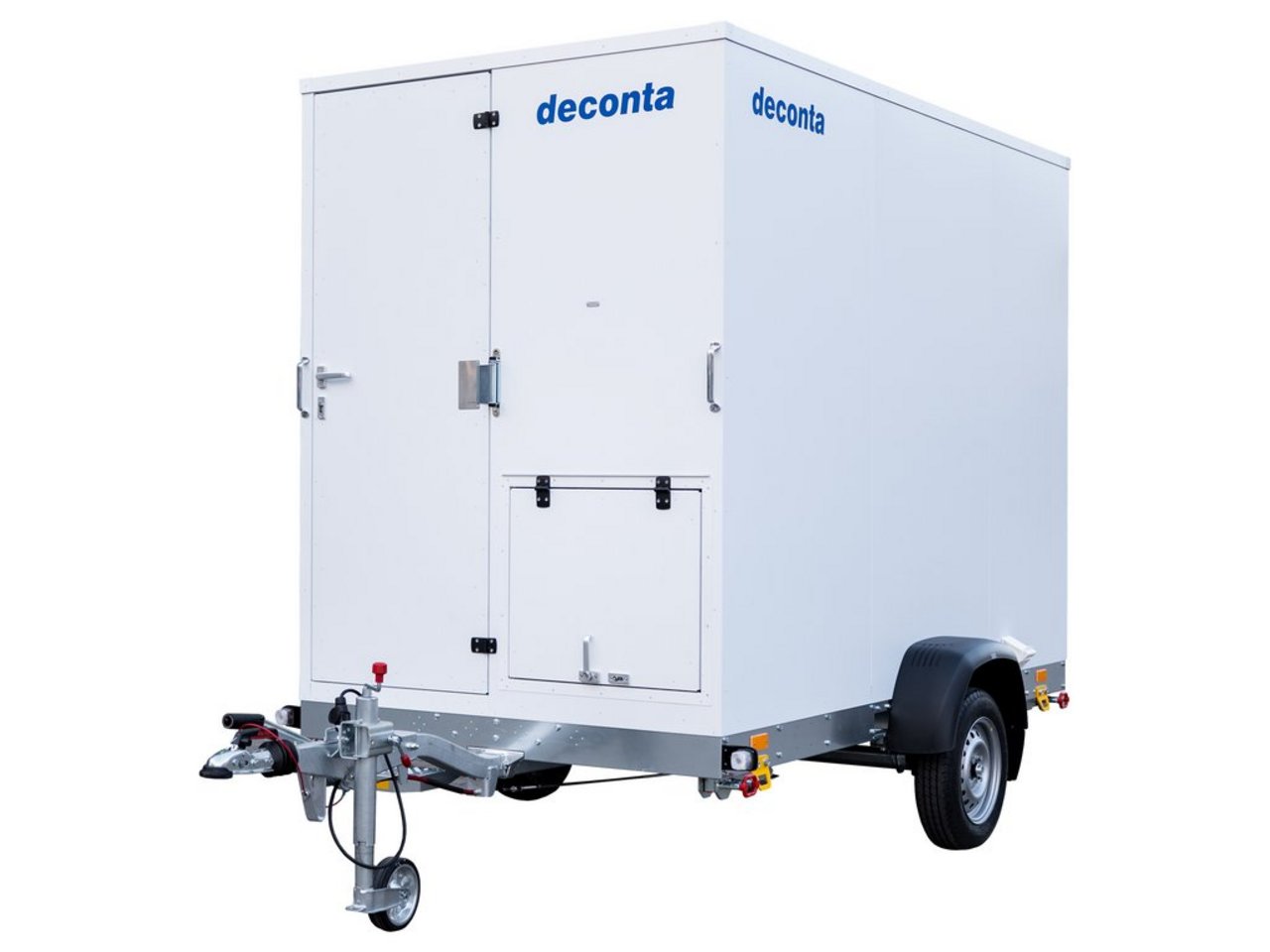

Mobile Decon Unit deco mobil E3000
The deco mobil E3000 mobile airlock is based on a multi-chamber system that allows the contaminated area to be entered in stages and exited in several stages without carry-over.
A negative pressure is generated in this airlock system so that contaminated components cannot enter other rooms or the outside air either through air exchange or carry-over, e.g. via protective clothing.
Energy supply in two different versions:
- Self-sufficient

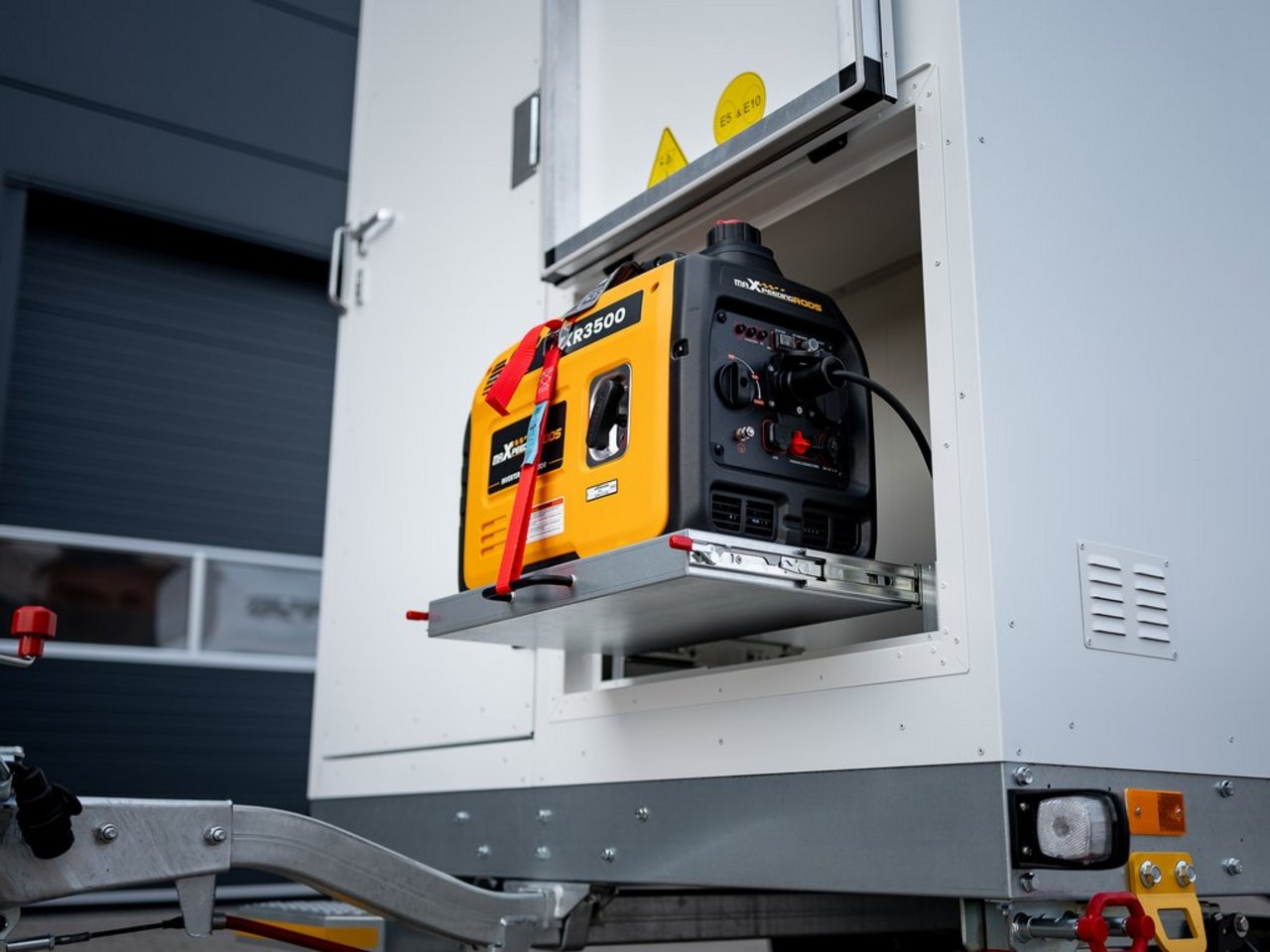

The electric water heater with a 3 kW heating element and the room heater receive their necessary power supply from the 3 kW power generator. The on-board petrol power generator enables all consumers to be used without an external power connection. (self-sufficient operation). - 230V
Power is supplied via the external power connection to the 230 V mains.
Equipment

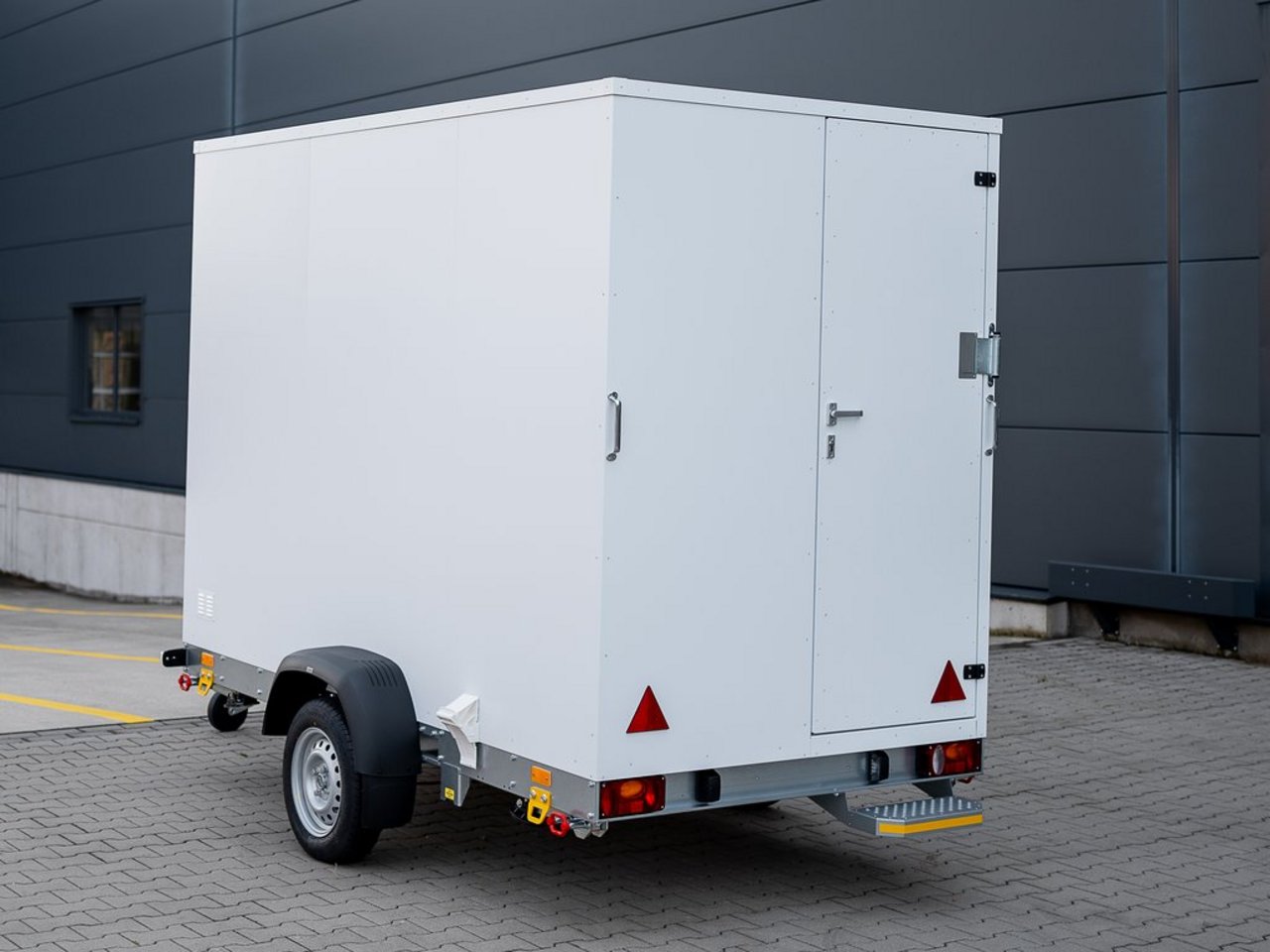

Aluminium frame construction, wall material made of aluminium composite panels, galvanised steel chassis construction, rubber-mounted single-axle chassis, 145 / 80 R 13 tyres, overrun brake and handbrake, ball head coupling, 230 V petrol generator, 2 door entrances, vehicle lighting in accordance with ECE R48, 13-pin power supply (optional 7-pin via adapter), support wheel, puncture spray, brake wedges, crank supports, spirit level for vehicle levelling, floor drain in all areas
Clean space:

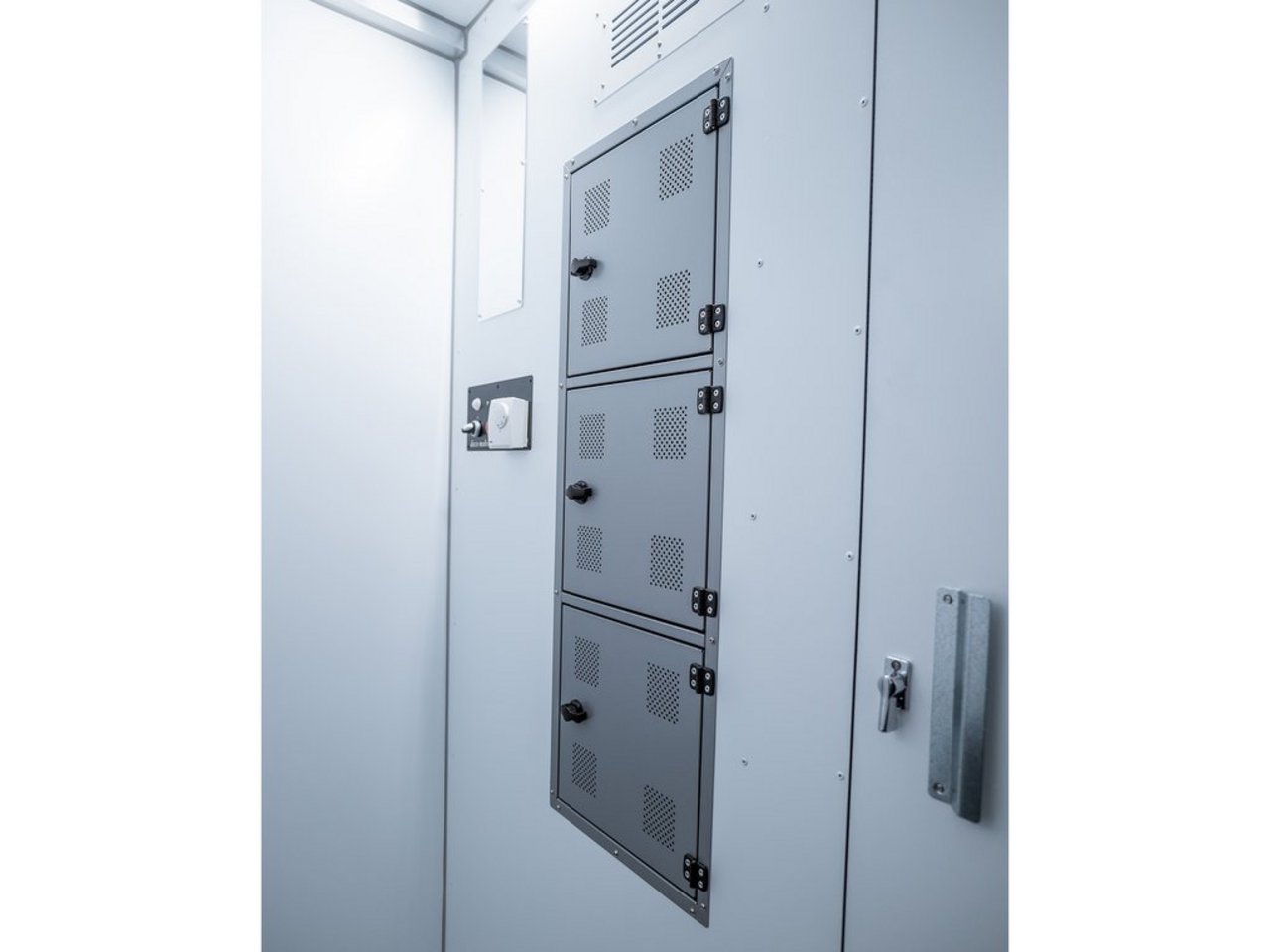

LED lighting with motion detector, coat hooks, 230 V socket, mirror, lockable storage compartments, lockable outer door, non-slip floor covering

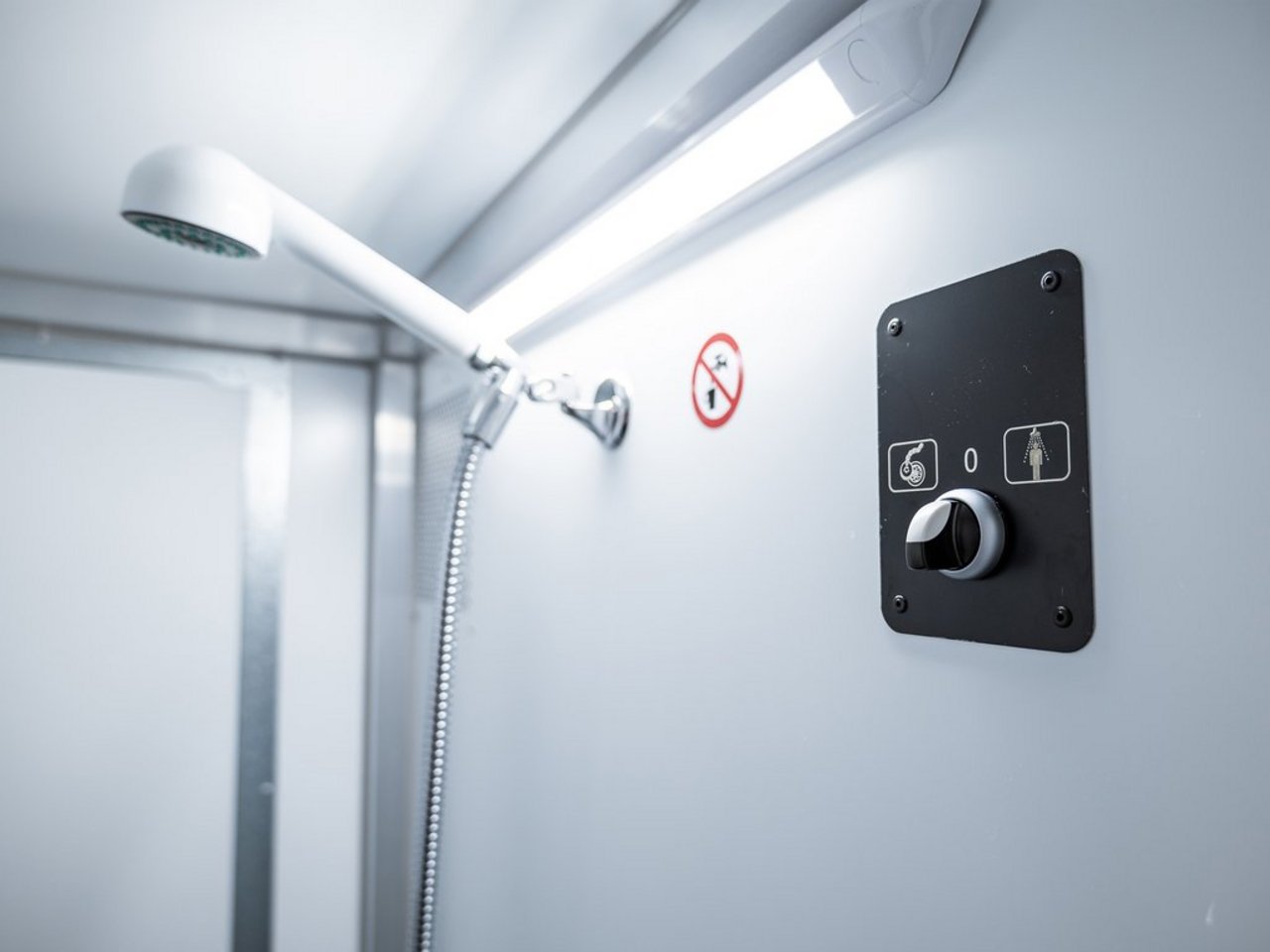

Shower room:

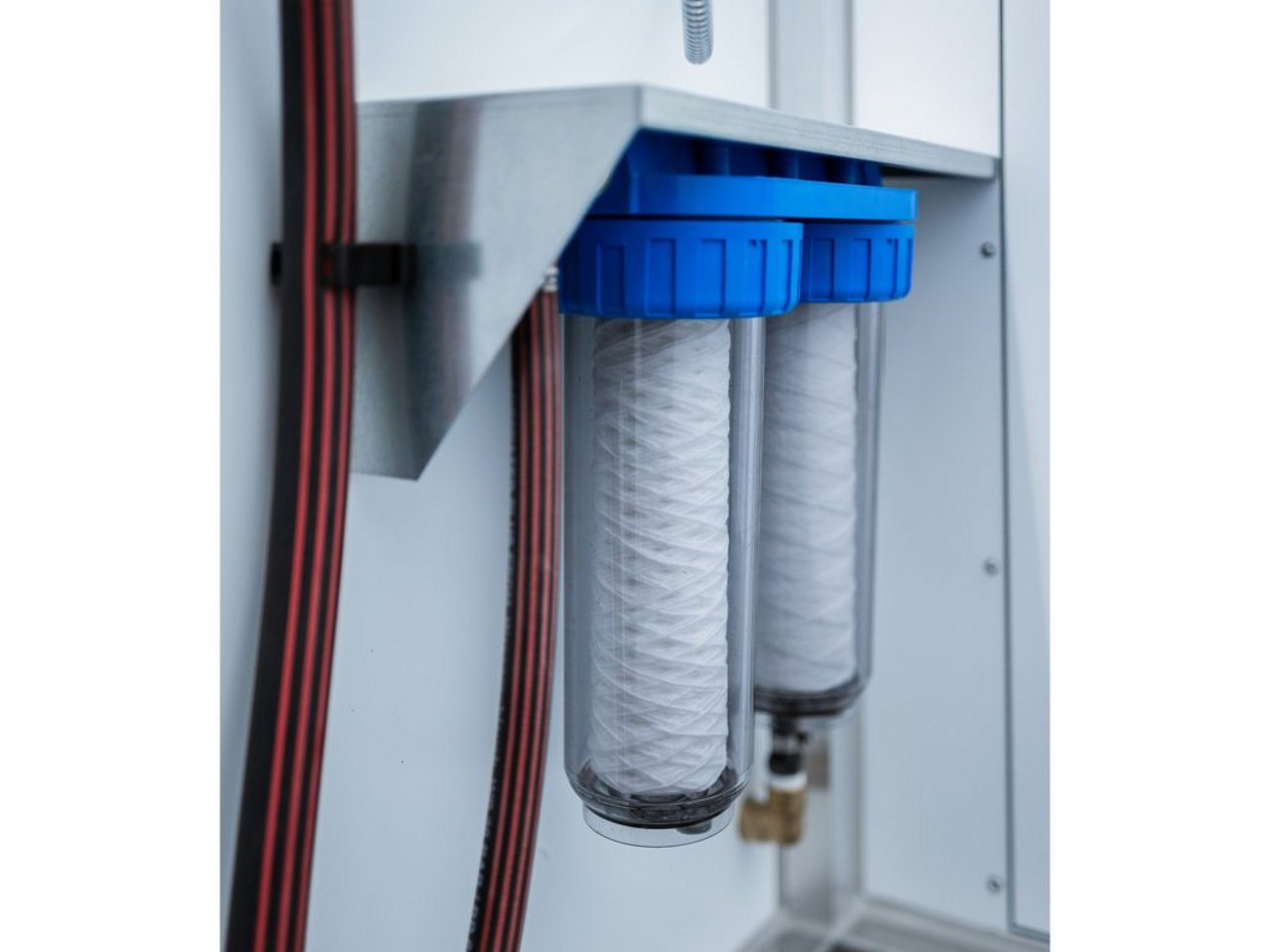

LED lighting, wastewater filter system, coat hooks, shower fitting, floor grates, soap dish, self-closing doors
Contaminated room:

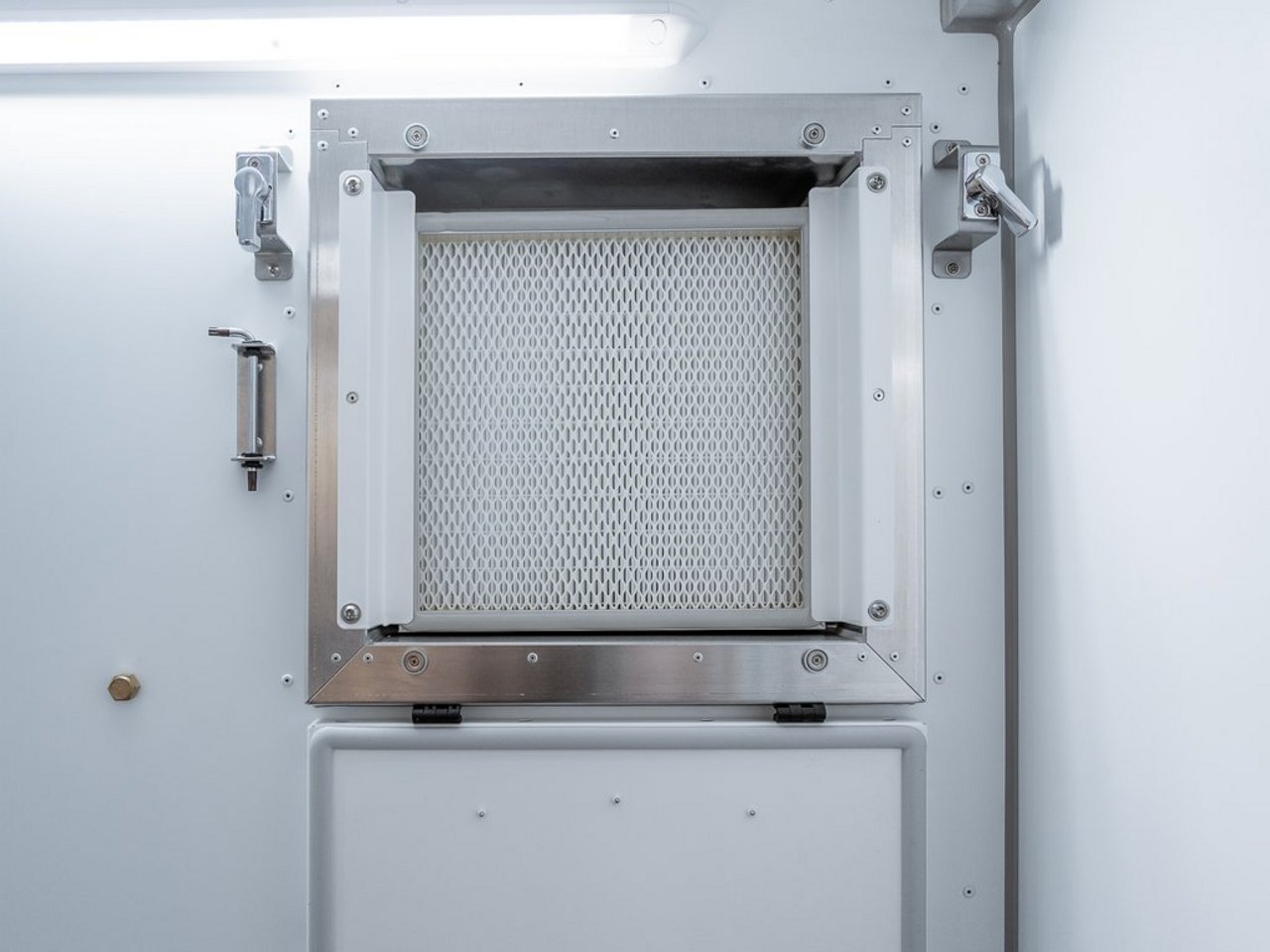

LED lighting with motion detector, negative pressure unit with pre-heated supply air, coat hooks, lockable outer door, non-slip floor covering
Technical room:
LED lighting with motion detector, power and water supply, main switch, fresh and wastewater hoses, 2x Geka coupling, power cable, operating instructions, 13 to 7-pin adapter
Technical data
- Dimensions: approx. 4370 x 2530 x 2005 mm
- Weight: approx. 620 kg
- Supply voltage: 230V / 50Hz
- Permissible ambient temperature: 5 °C to 40 °C
- Emission sound pressure level LpA: < 70 dB(A)
